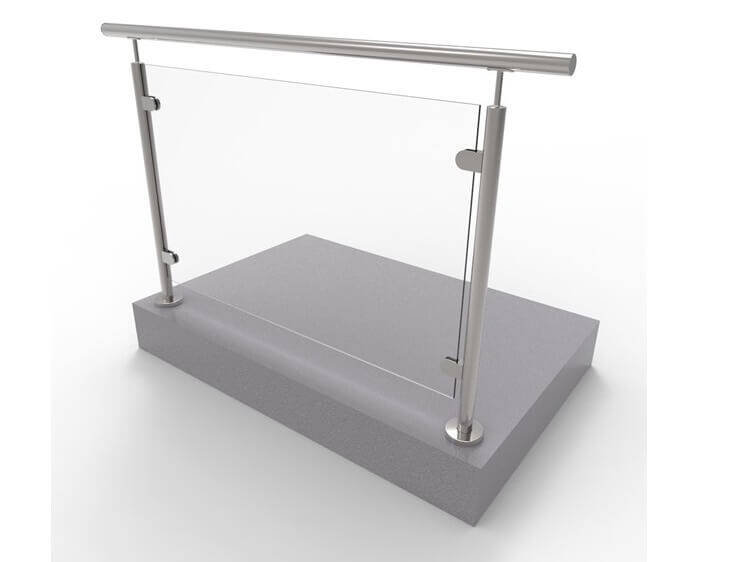

Framed Glass Balustrades are a combination of satin or mirror polished stainless steel tube, with stylish modular stainless steel components and toughened glass, the stainless steel clamps attached to the sides which support the glass panels. Handrails are typically mounted on top of the posts, however other options are available using various bracket types to achieve a different look.
It is a surface mounted system which requires appropriate structural support for fixing, the posts may be attached to either concrete, timber or steel structures. This balustrade is suitable for almost any application, including stairwells, decking and balconies.
Glass Balustrade: Advantages
Whereas with many stainless steel balustrade systems you have a limited choice designs, choose ours and you’ll have a whole host of options;
1. Top rail or no top rail:Choose a system with a top rail for a more traditional look or go without for a minimalist, “barely there” styling
2. Posts: You’ve a choice of diameters for the posts (Ø42.4mm / Ø48.3mm / Ø50.8 mm / Ø60.3mm)
3. Components: A wide selection of components and fixings is available. This enables a wide range of distinctive designs to be created
4. Height: We offer the balustrade system at heights anywhere between 900mm (for systems installed at ground level) and 2 metres (for privacy screens). Note: decks, balconies and raised areas of 600mm or more above ground level require an 1100 mm high handrail (if work is subject to building regulations)

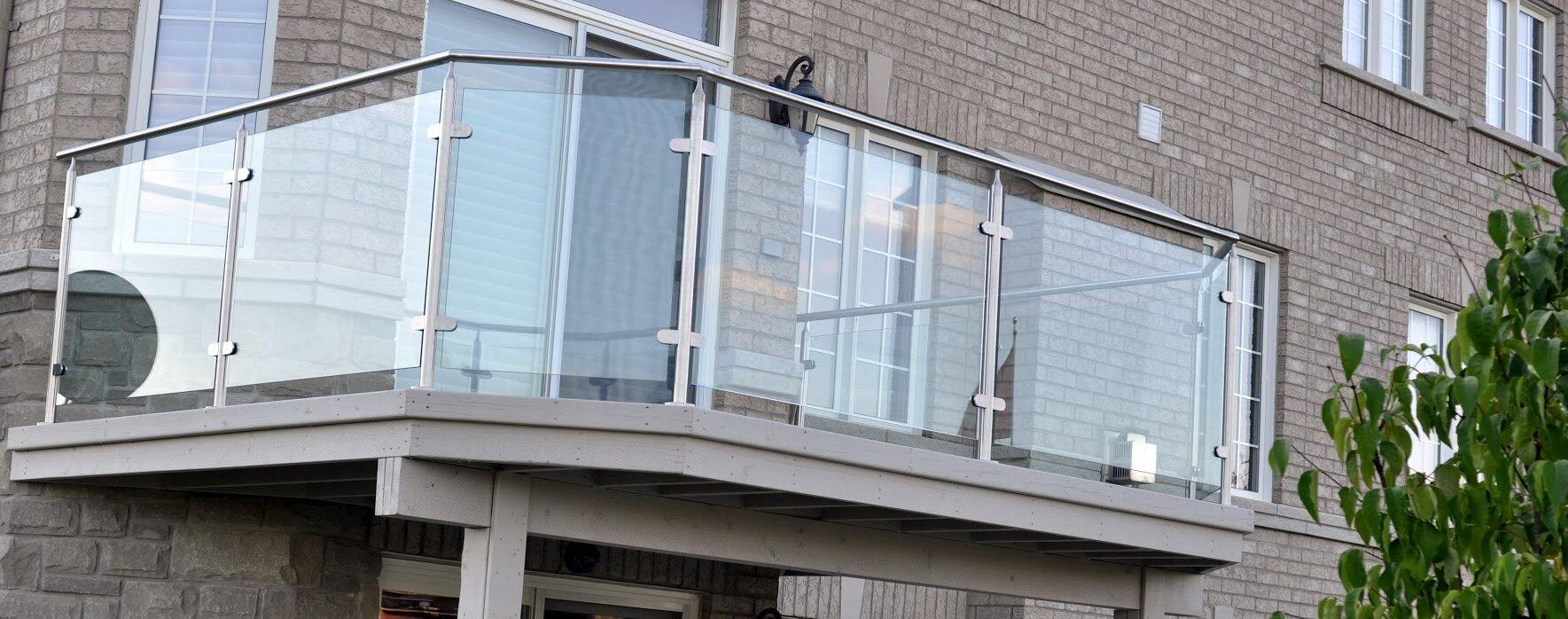

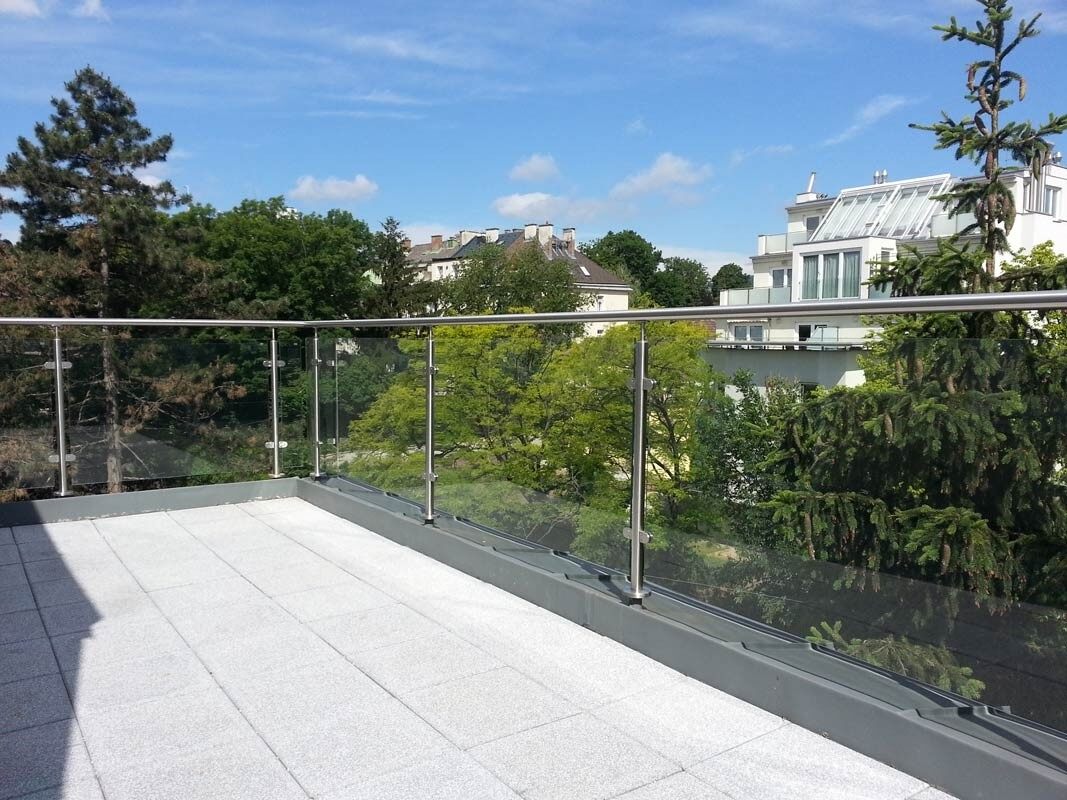

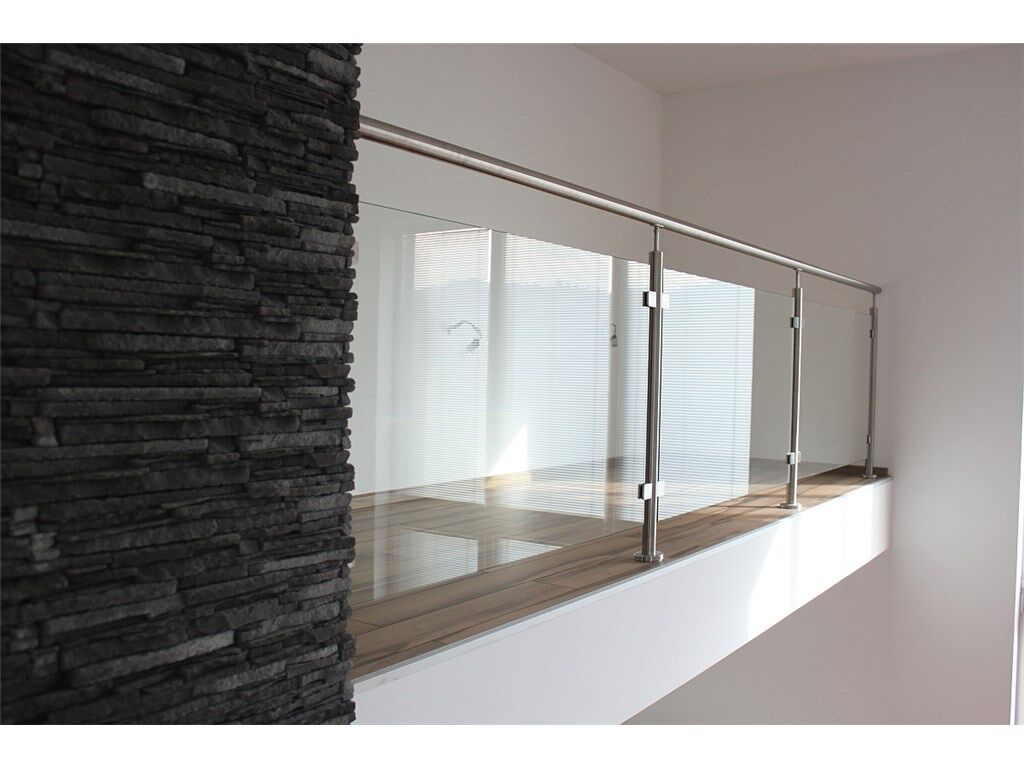

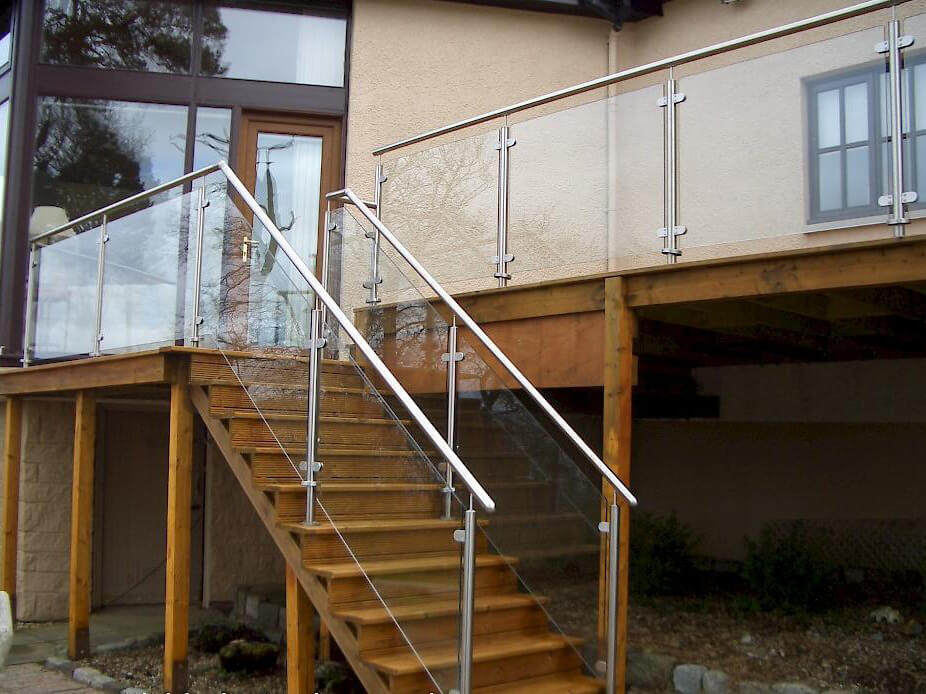

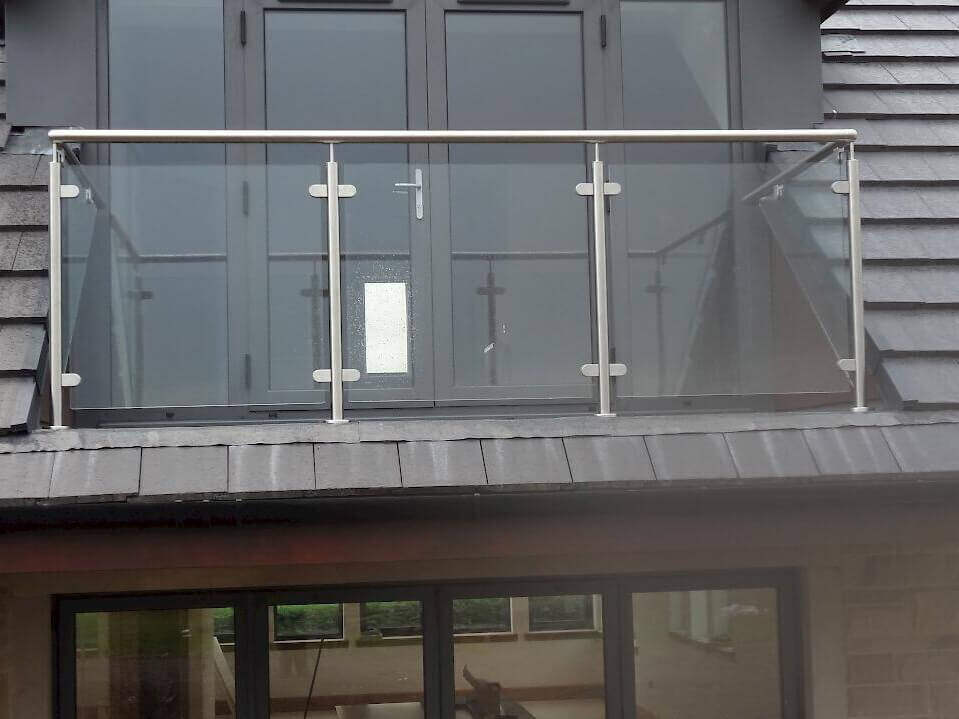

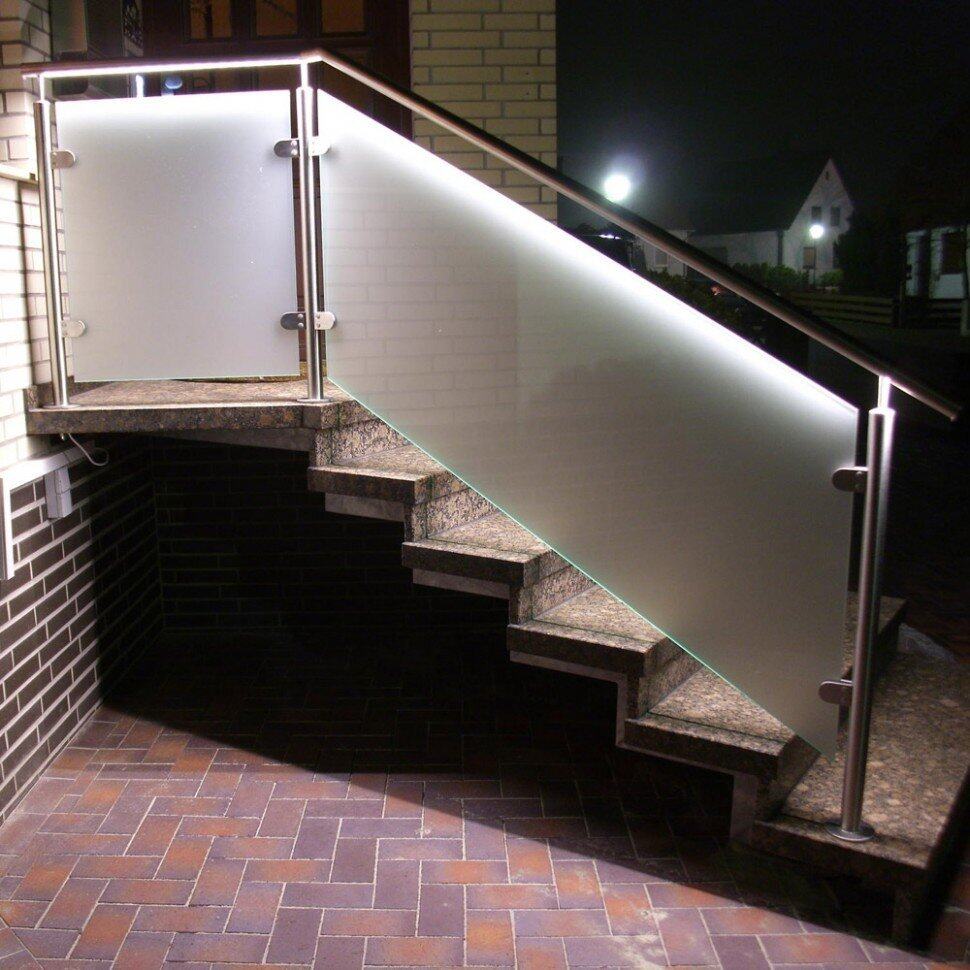

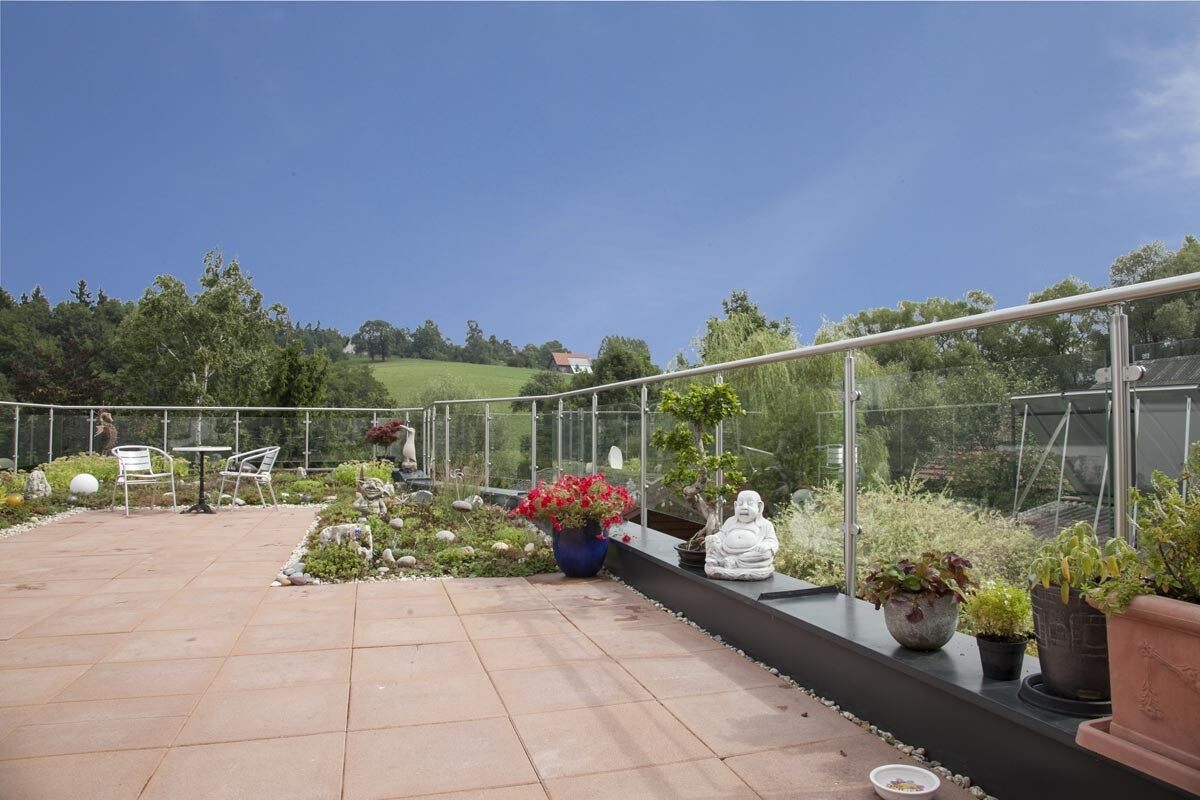

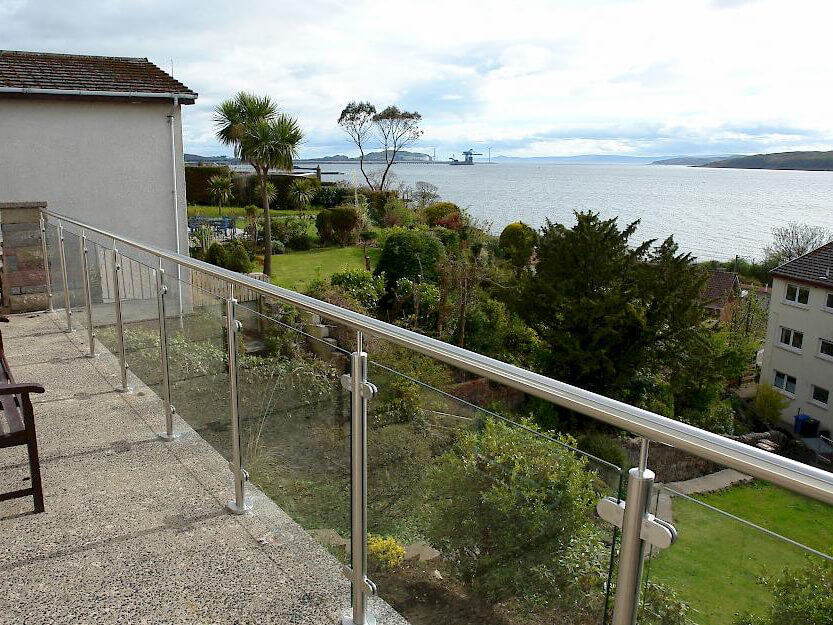

Glass Balustrade Projects:
Stair Railing Manufacturers: LongTai
Since the establishment, LongTai's products are defined by their unique design-providing uncompromised durability and good looks. The elegant features of baluster design result in unsurpassed strength and the benefits are simply endless. After years of hardworking, we also use advanced production equipment and competent technical personnel to design and manufacture a series of balcony glass railing and earn many reputations from our clients all over the world.
|
Material |
Finish |
Size/Spacing |
TubularPosts |
Stainless Steel(304 or 316) |
satin |
Ø42.4*2.0mm |
mirror polish |
|||
Electro plating |
|||
powder coat |
|||
Infill |
Temperedglass (Mono or SGP laminated) |
clear /tinted/frit |
MIN 12mm |
Top Rail / Hand Rail |
Stainless Steel(304 or 316) |
satin |
Ø42.4/Ø50.8 |
mirror polish |
|||
Electro plating |
|||
Solid Wood |
|
|
|
PVC |
|
|
|
Aluminum |
|
|
Why choose this system? |
Standard Specifications |
Project Suitability |
•Timeless design is suitable for almost any location
•Modular design allows flexible design - can go round corners and up/down steps
•Simple to install
•Suitable for surface (floor) and fascia mounting
•Building regulation compliant
• Tested to BS 6180:2011
|
•48.3 mm diameter stainless steel baluster posts (floor or fascia mount)
•48.3 mm diameter stainless steel handrail
•Modular stainless steel components
•10 mm toughened glass panels - cut to size to suit project
•Grade 304 or Grade 316 stainless steel
•Satin or mirror polished finish (mirror finish recommended for coastal areas) |

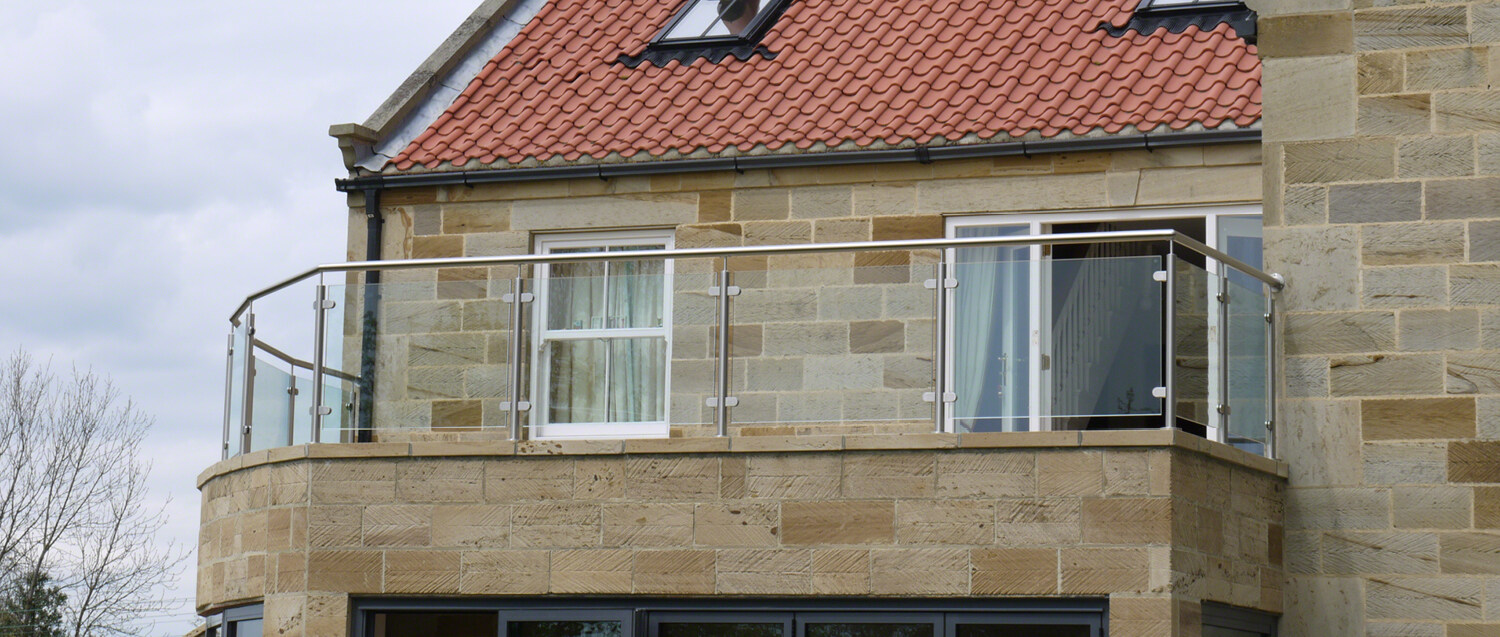

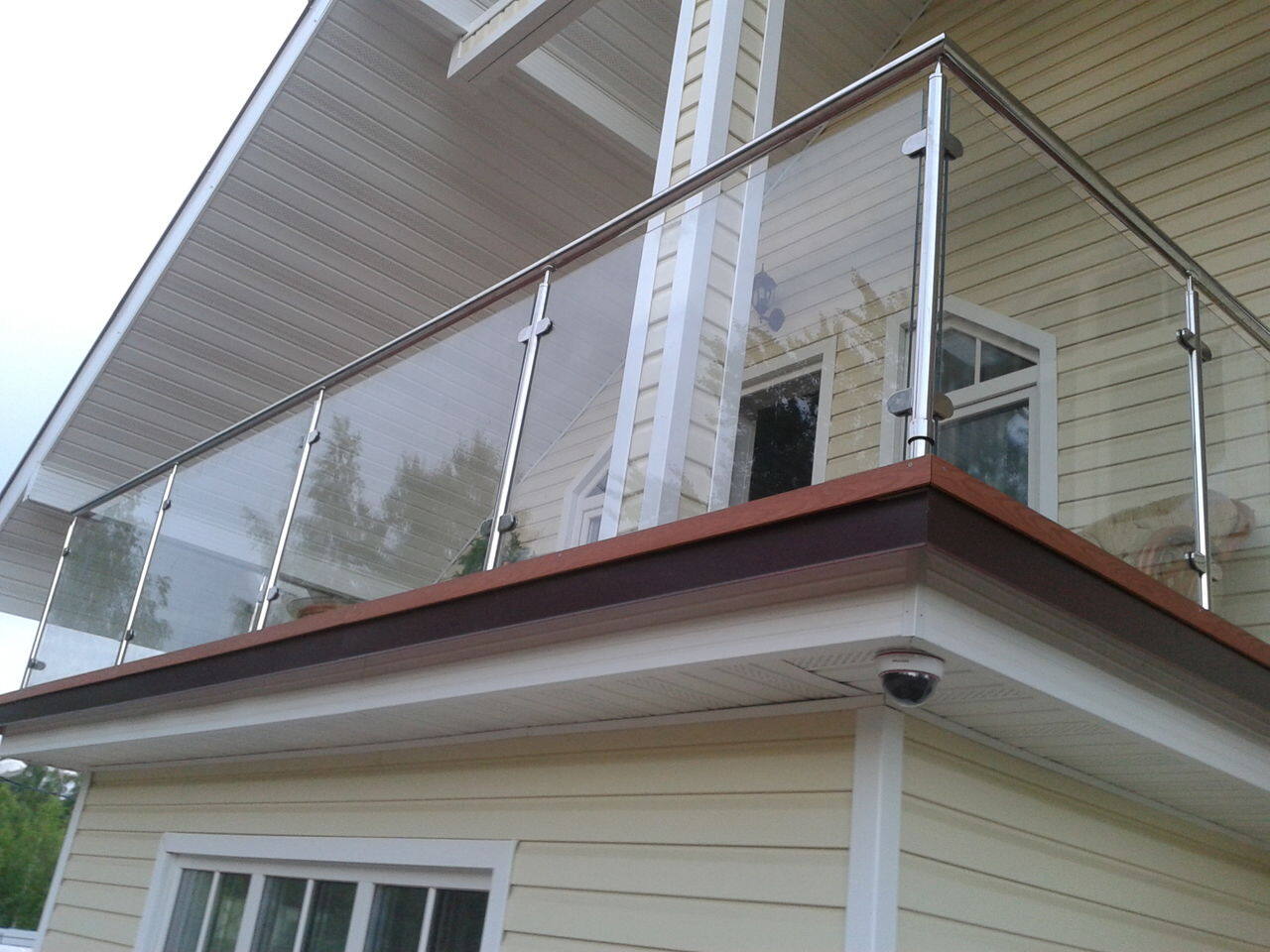

•Balconies
•Patio and decks

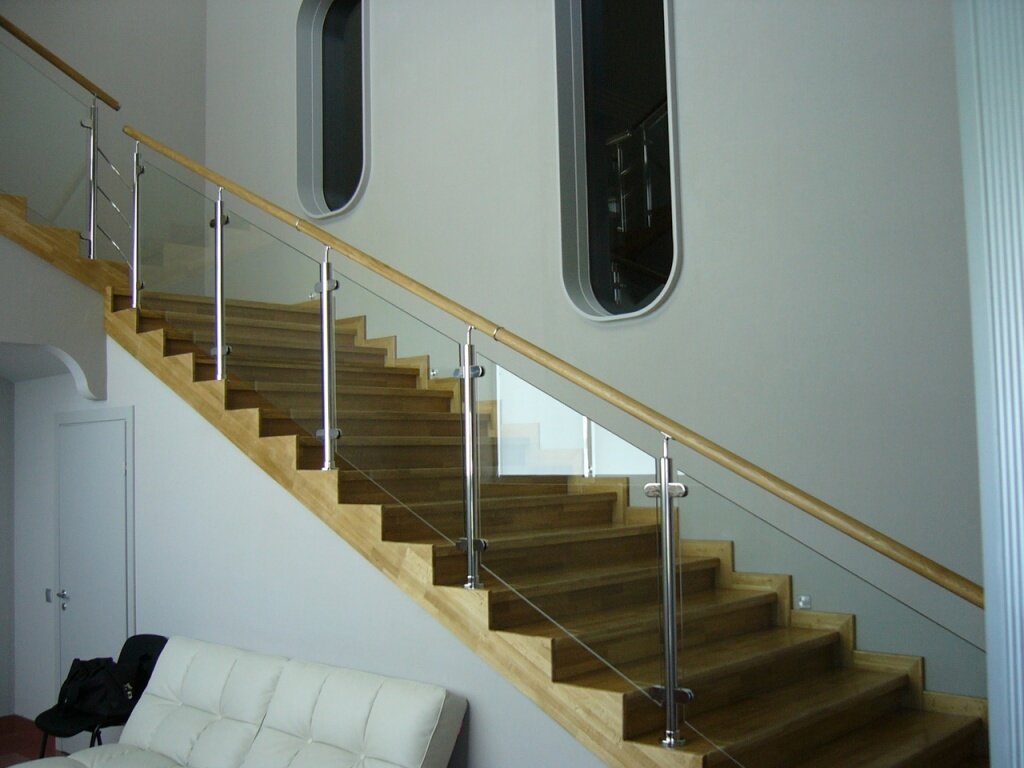

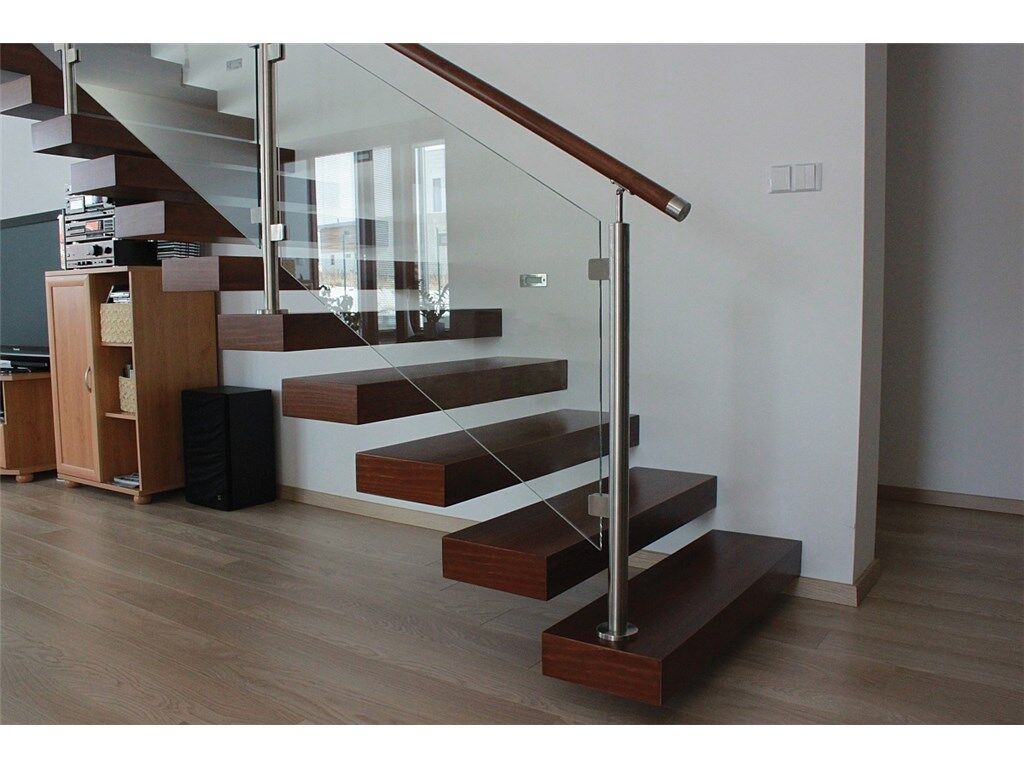

•Stairwells
•Retail Projects

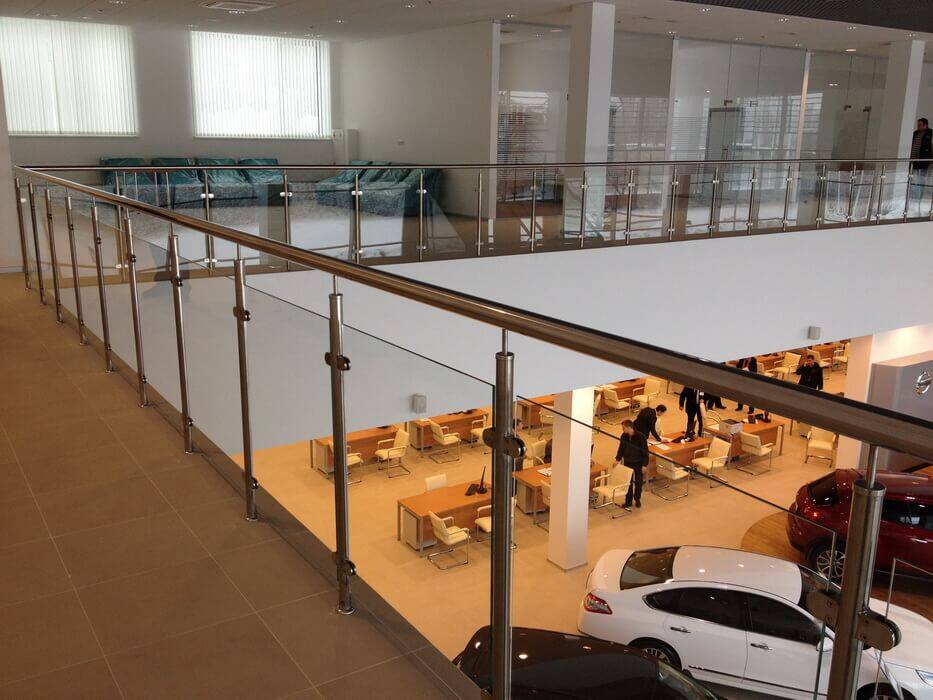

•Offices / commercial
•Swimming pools
•Holiday Lodges |
