SS Baluster Glass Railing

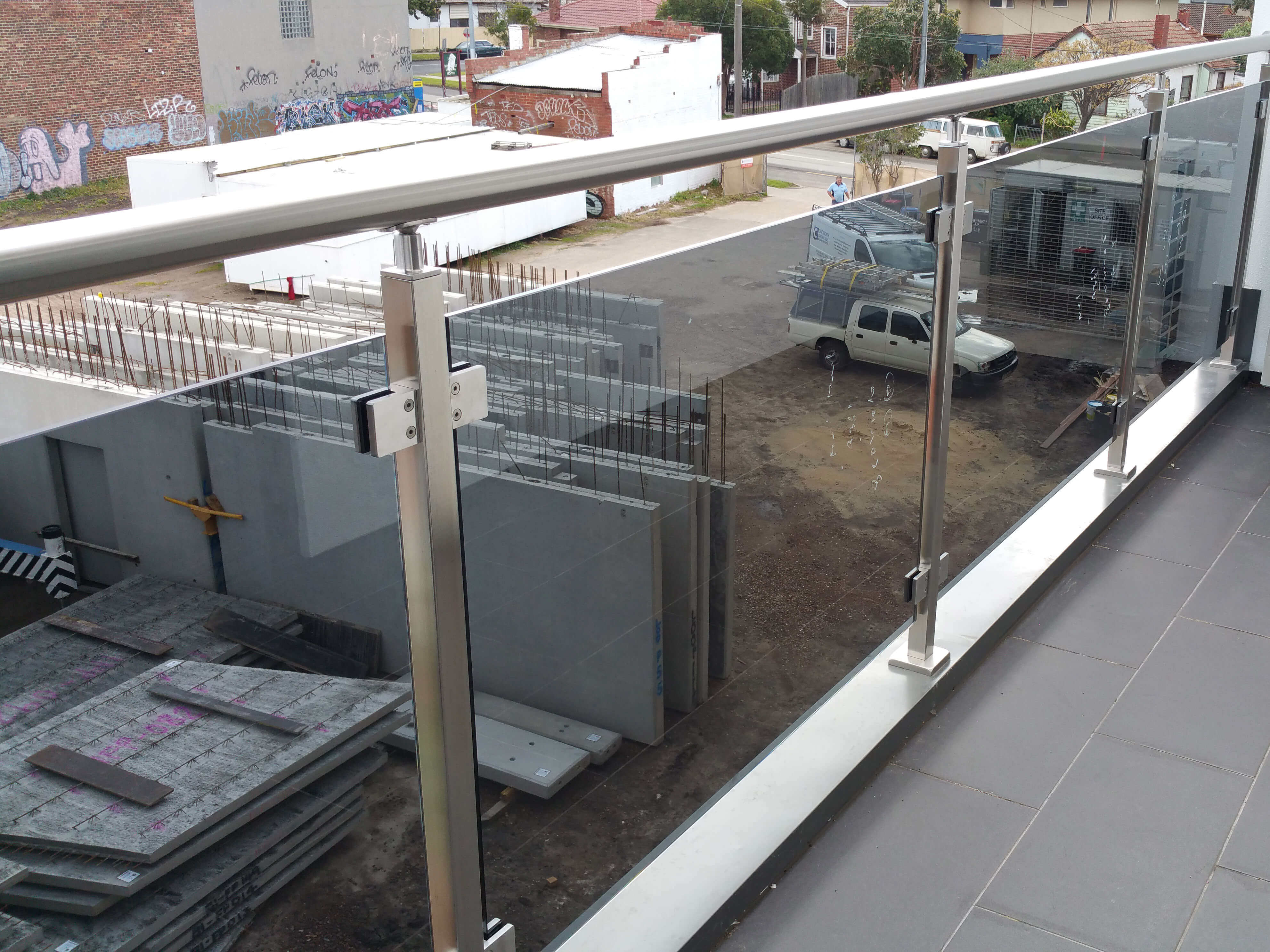

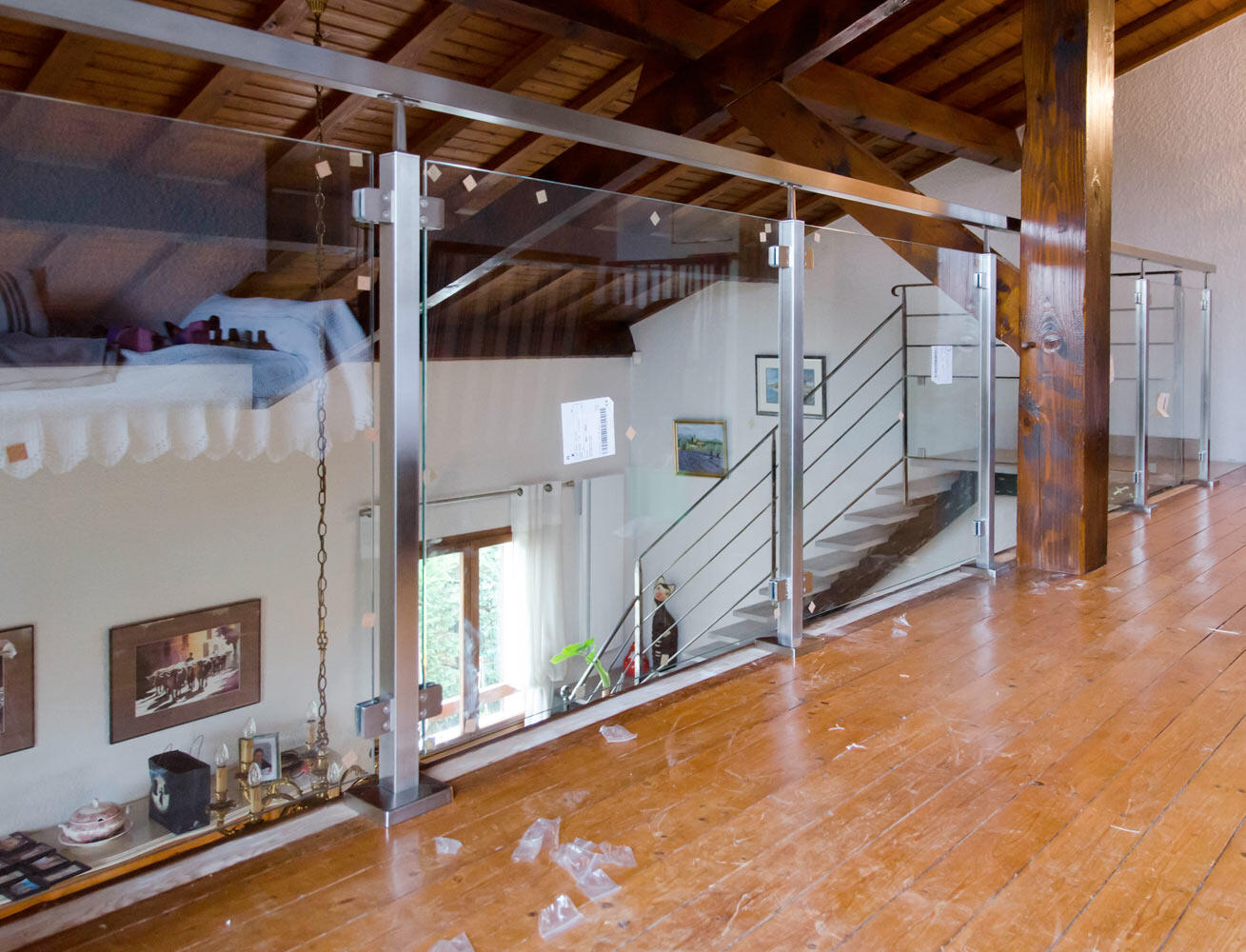

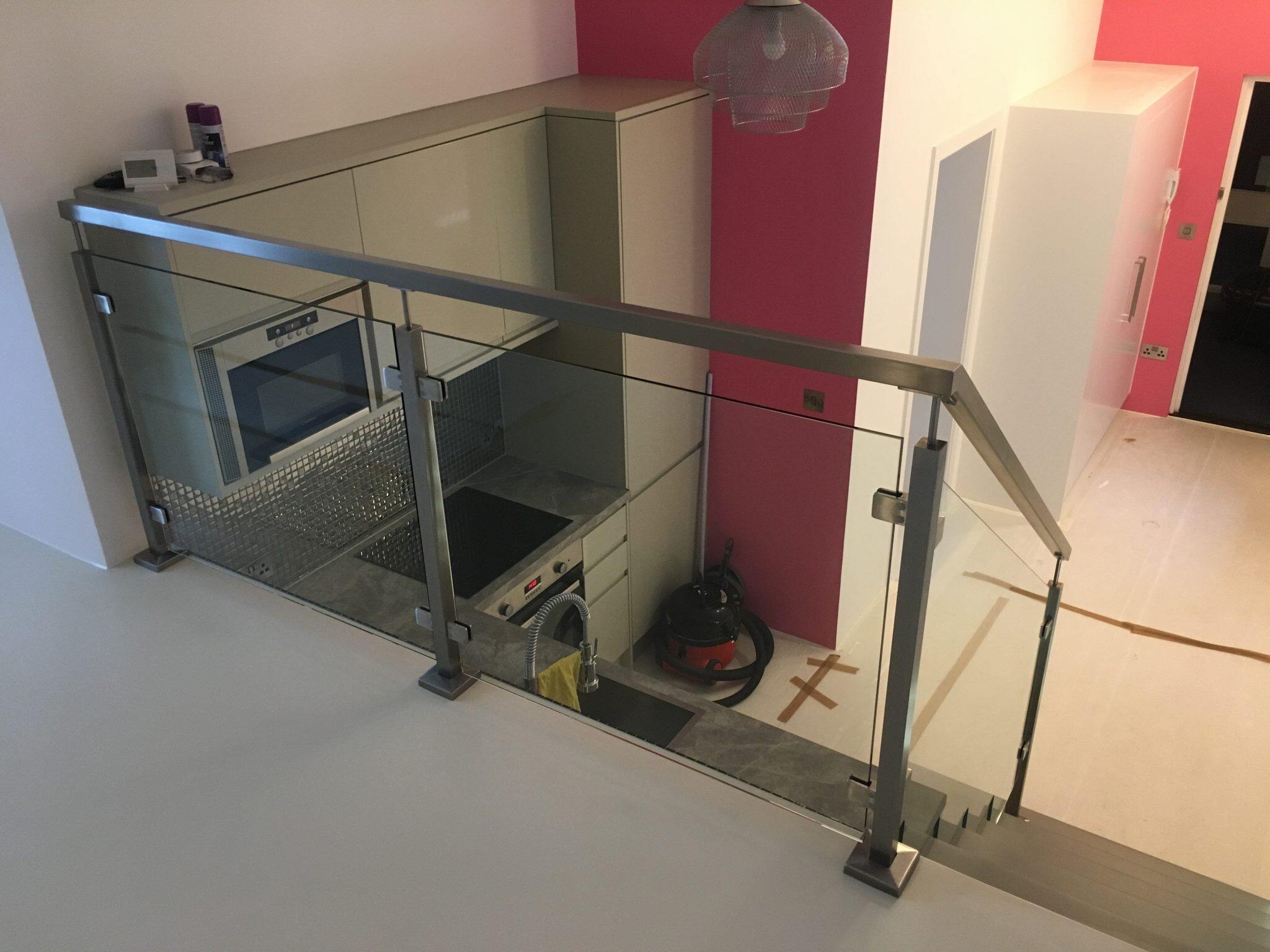

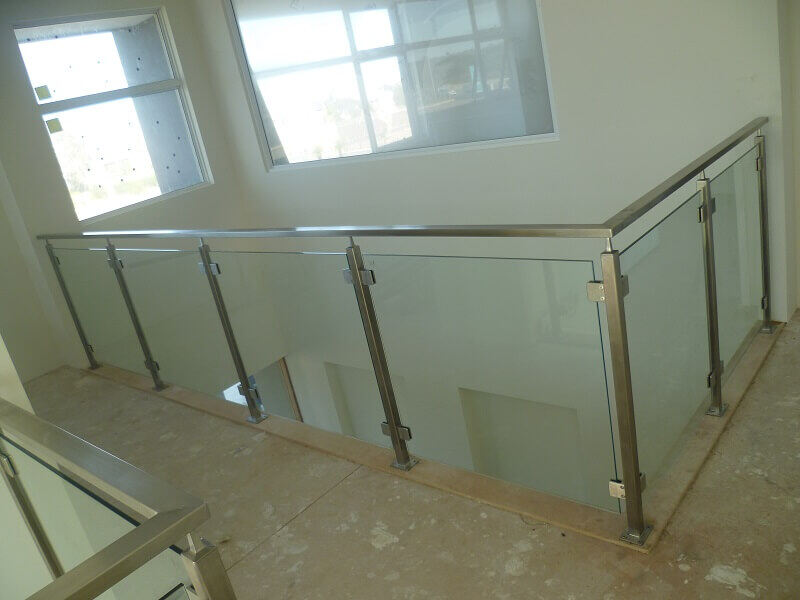

Square Tube post glass balustrade

Framed Glass Balustrades are a combination of satin or mirror polished stainless steel tube, with stylish modular stainless steel components and toughened glass, the stainless steel clamps attached to the sides which support the glass panels. Handrails are typically mounted on top of the posts, however other options are available using various bracket types to achieve a different look.

Inquiry

It is a surface mounted system which requires appropriate structural support for fixing, the posts may be attached to either concrete, timber or steel structures. This balustrade is suitable for almost any application, including stairwells, decking and balconies.



Choice and flexibility

Whereas with many stainless steel balustrade systems you have a limited choice designs, choose ours and you’ll have a whole host of options;

1. Top rail or no top rail:Choose a system with a top rail for a more traditional look or go without for a minimalist, “barely there” styling

2. Posts:  You’ve a choice of diameters for the posts (40*40mm / 50*50mm / 40*60 mm / Ø70*70mm)

3. Components:A wide selection of components and fixings is available. This enables a wide range of distinctive designs to be created

4. Height: We offer the balustrade system at heights anywhere between 900mm (for systems installed at ground level) and 2 metres (for privacy screens). Note: decks, balconies and raised areas of 600mm or more above ground level require an 1100 mm high handrail (if work is subject to building regulations)



balustrade

balustrade



balustrade

balustrade





Material

Finish

Size/Spacing

TubularPosts

Stainless Steel(304 or 316)

satin

Ø50*50*2.0mm

mirror polish

Electro plating

powder coat

Infill

Temperedglass (Mono or SGP laminated)

clear /tinted/frit

MIN 12mm

Top Rail / Hand Rail

Stainless Steel(304 or 316)

satin

50*50*1.2mm/40*60*1.2mm

mirror polish

Electro plating

Solid Wood





PVC





Aluminum







Why choose this system?

Standard Specifications

Project Suitability

•Timeless design is suitable for almost any location



•Modular design allows flexible design - can go round corners and up/down steps



•Simple to install



•Suitable for surface (floor) and fascia mounting



•Building regulation compliant



• Tested to BS 6180:2011



•50*50*1.5 mm diameter stainless steel baluster posts (floor or fascia mount)



•50*50*1.2 mm diameter stainless steel handrail



•Modular stainless steel components



•10 mm toughened glass panels - cut to size to suit project



•Grade 304 or Grade 316 stainless steel



•Satin or mirror polished finish (mirror finish recommended for coastal areas)

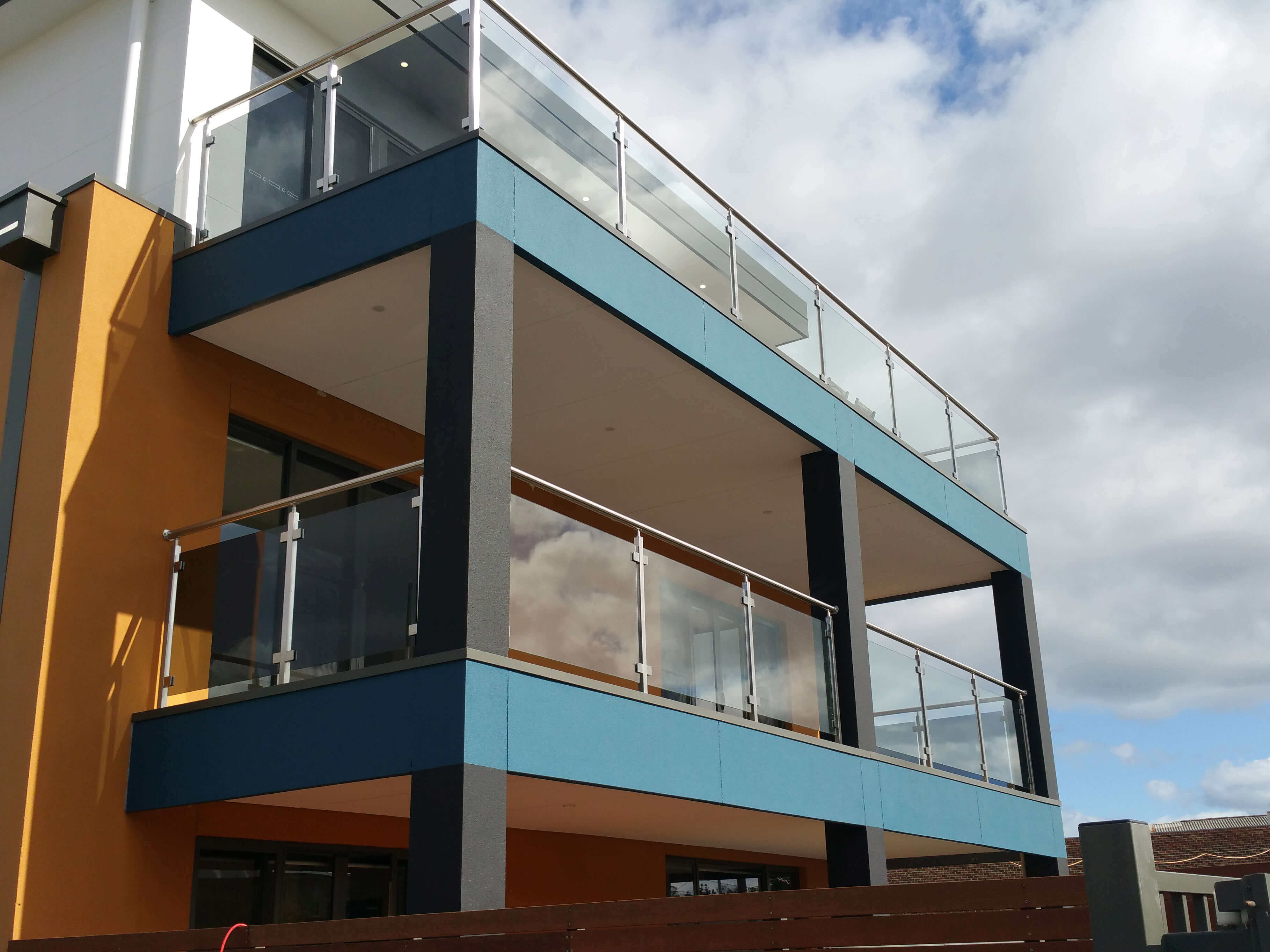

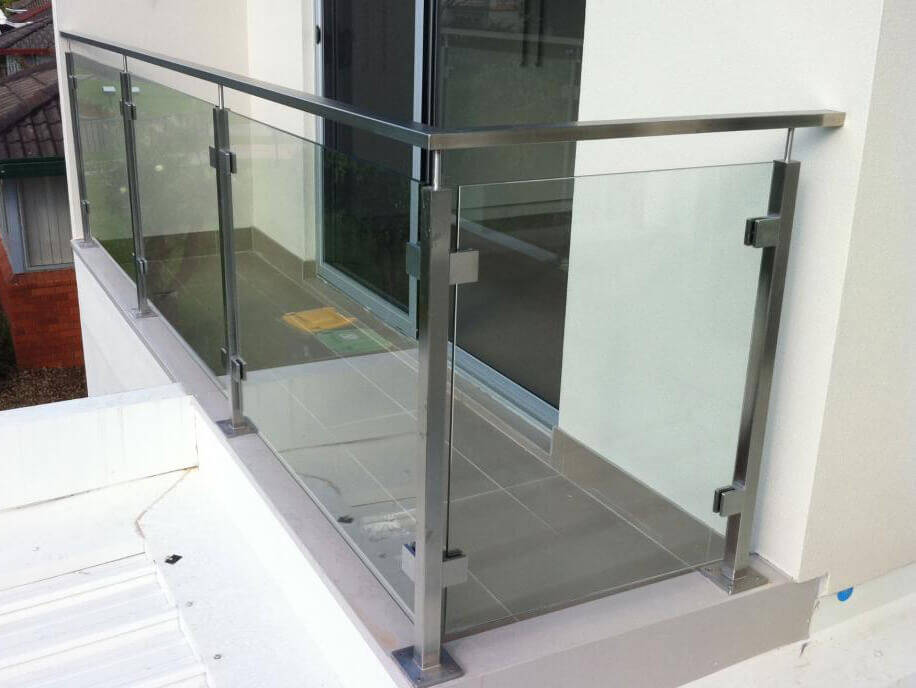

•Balconies



•Patio and decks

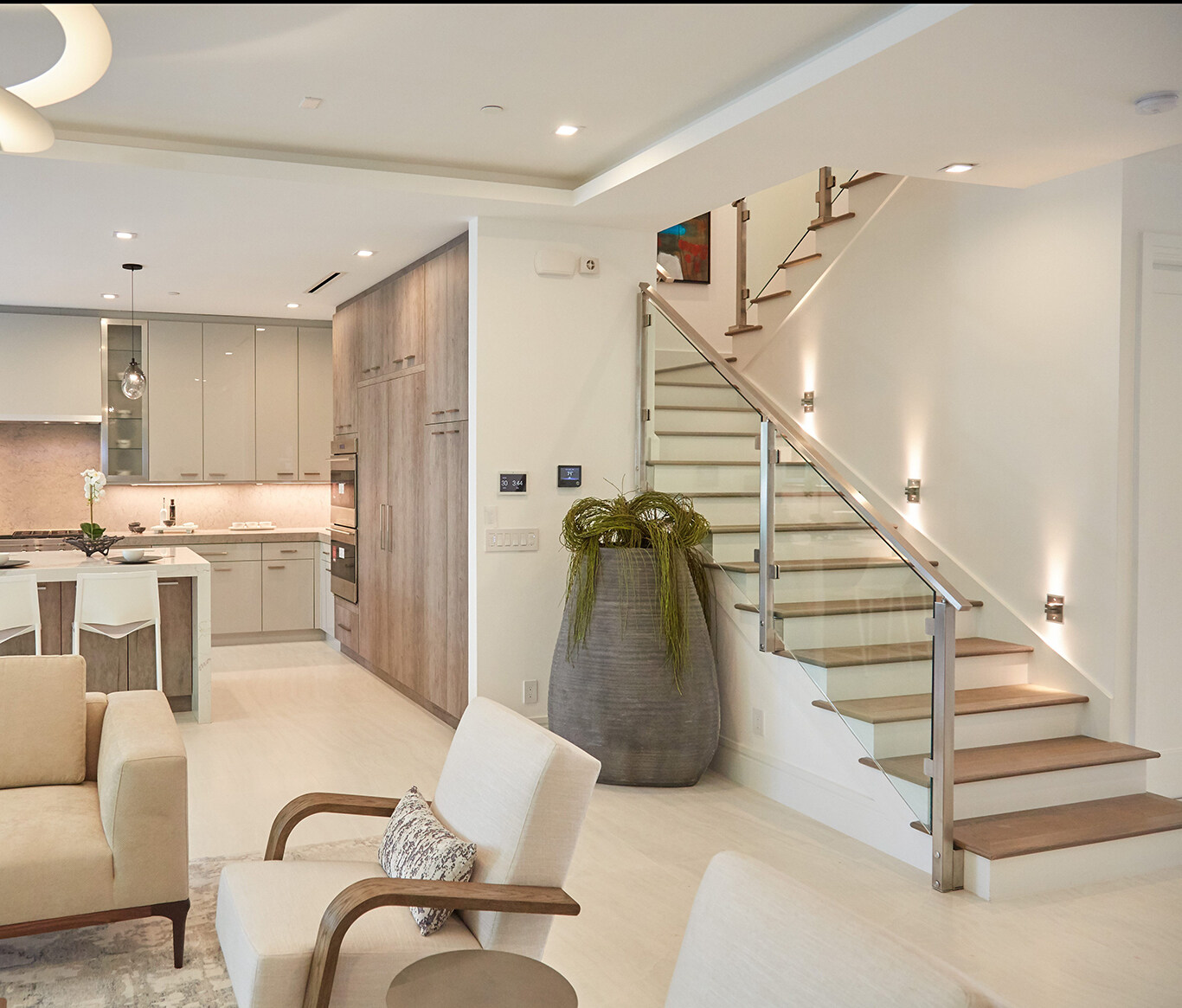

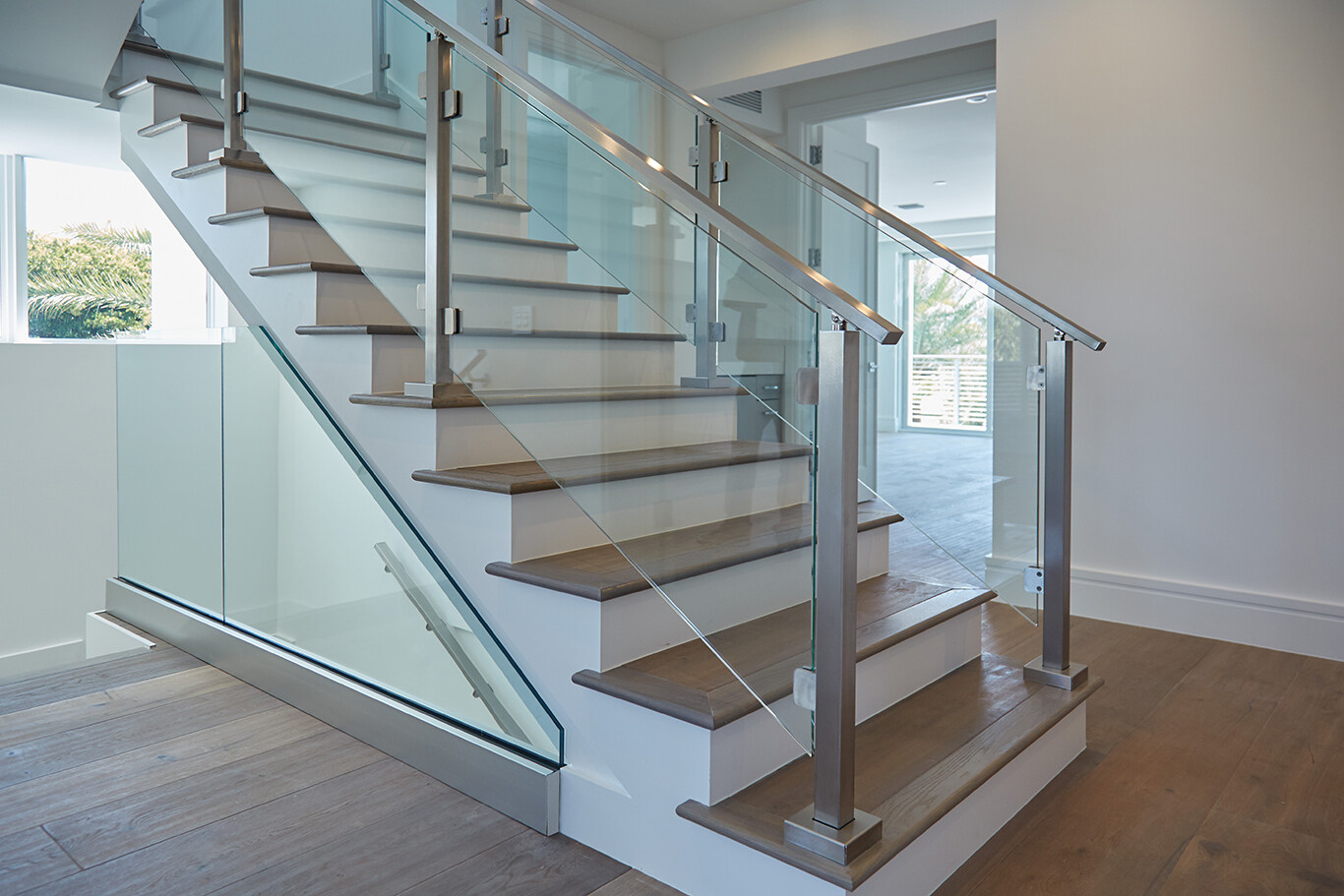

•Stairwells



•Retail Projects



•Offices / commercial



•Swimming pools



•Holiday Lodges
