SS Rod Railing

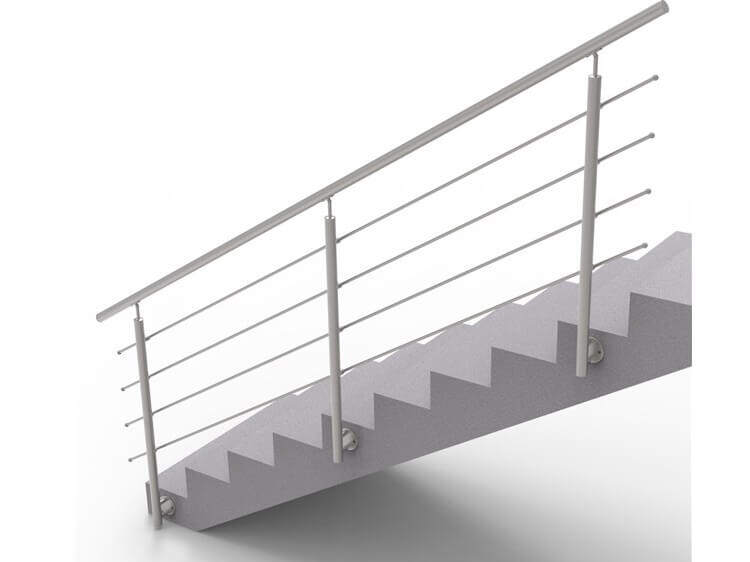

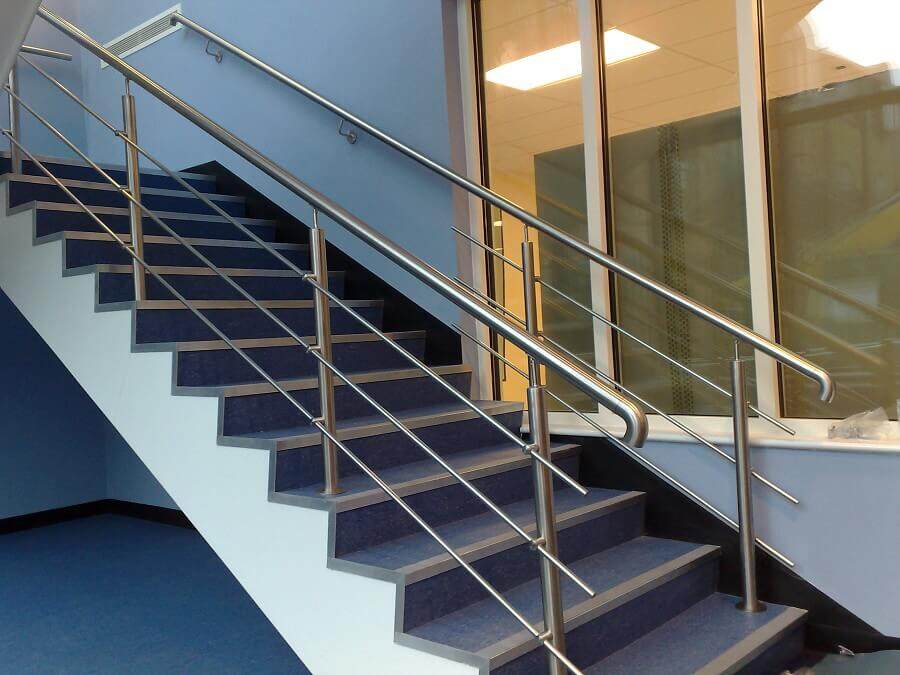

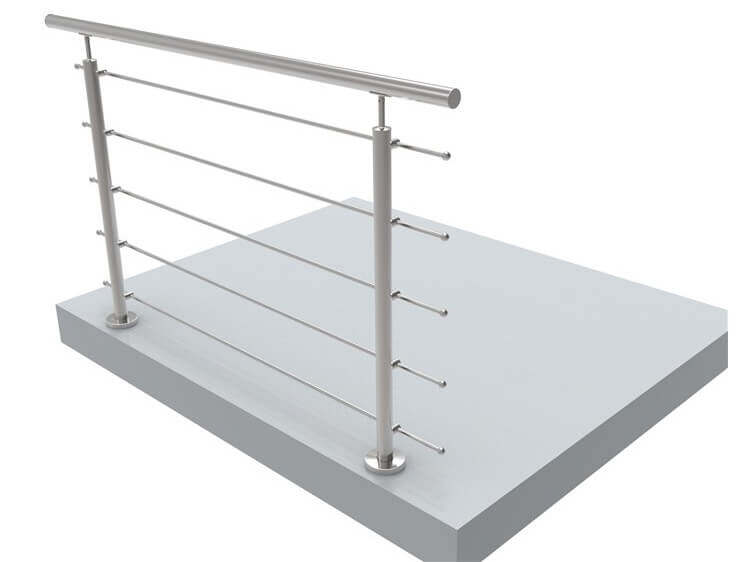

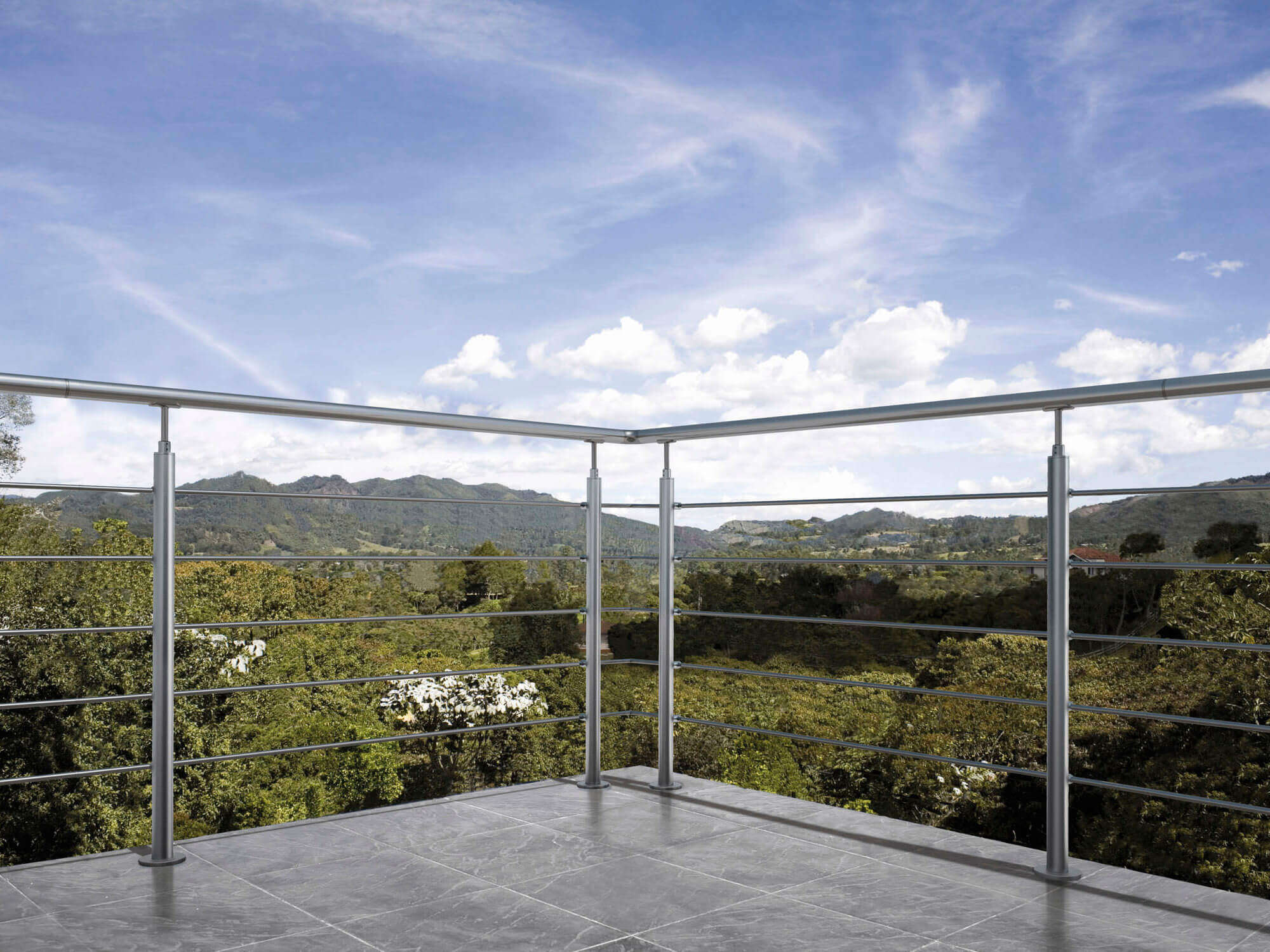

Crossbar railings/Rod Balustrade LTR-01

Rod Railing is a revolutionary system and the innovative alternative to cable rail, it has the same sleek profile as cable but with enhanced strength and durability. This premium railing infill is made with 1/4″rods formed from 304 or 316 stainless steel.  Unlike cable, these rods are simple to maintain, will never corrode, and won’t sag over time.

Rod Railing is highly customizable. Select lengths from 2’ to 20’ in one foot increments to fit your project requirements. All Stainless Steel Round Bar is available in lengths up to 4 meters. Rod Railing can also be bent to turn a radius on a curved stairway, deck, or balcony. Rod Railing has all the beauty of cable railing with none of the upkeep, and it’s a durable option for interior and exterior applications.

Inquiry

Choice and flexibility

Whereas with many stainless steel balustrade systems you have a limited choice designs, choose ours and you’ll have a whole host of options;

1. Top rail or no top rail:Choose a system with a top rail for a more traditional look or go without for a minimalist, “barely there” styling

2. Posts:  You’ve a choice of diameters for the posts (Ø42.4mm / Ø48.3mm / Ø50.8 mm / Ø60.3mm)

3. Components:A wide selection of components and fixings is available. This enables a wide range of distinctive designs to be created

4. Height: We offer the balustrade system at heights anywhere between 900mm (for systems installed at ground level) and 2 metres (for privacy screens). Note: decks, balconies and raised areas of 600mm or more above ground level require an 1100 mm high handrail (if work is subject to building regulations)



Material

Finish

Size/Spacing

Posts

Stainless Steel(304 or 316)

satin

Ø50.8/Ø48.3/Ø42.4/Ø33.7*THK1.5*H850mm;

口40*THK2mm;

mirror polish

Electro Plating

powder coat

Infill

Multiline (Crossbar)

satin

Ø10mm,Ø12mm,Ø16mm, 15*5mm;

口10mm;

Cable

Ø3.2mm/Ø5mm

Top Rail / Hand Rail

Stainless Steel(304 or 316)

satin

Round:Ø48.3/Ø50.8*THK1.5

Square:口40*THK1.5

Oval: 80*40mm*THK1.5



mirror polish

Electro Plating

Timber(beech/oak)



Ø42,Ø45,Ø50*Lmax4000;

口40*Lmax4000;

PVC



Ø45/Ø50/Ø60
636/640/735/700/845/755

Aluminum
