SS Rod Railing

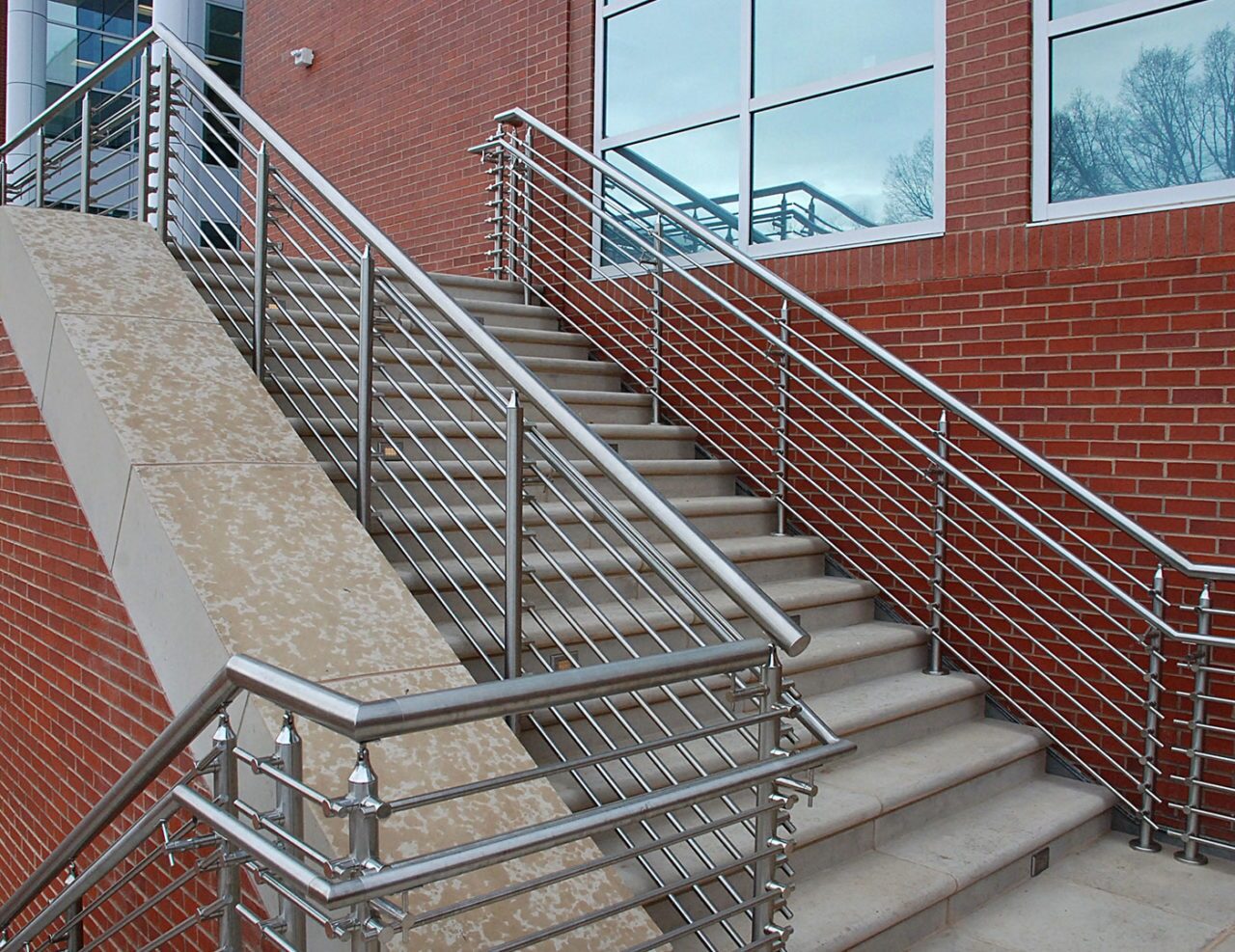

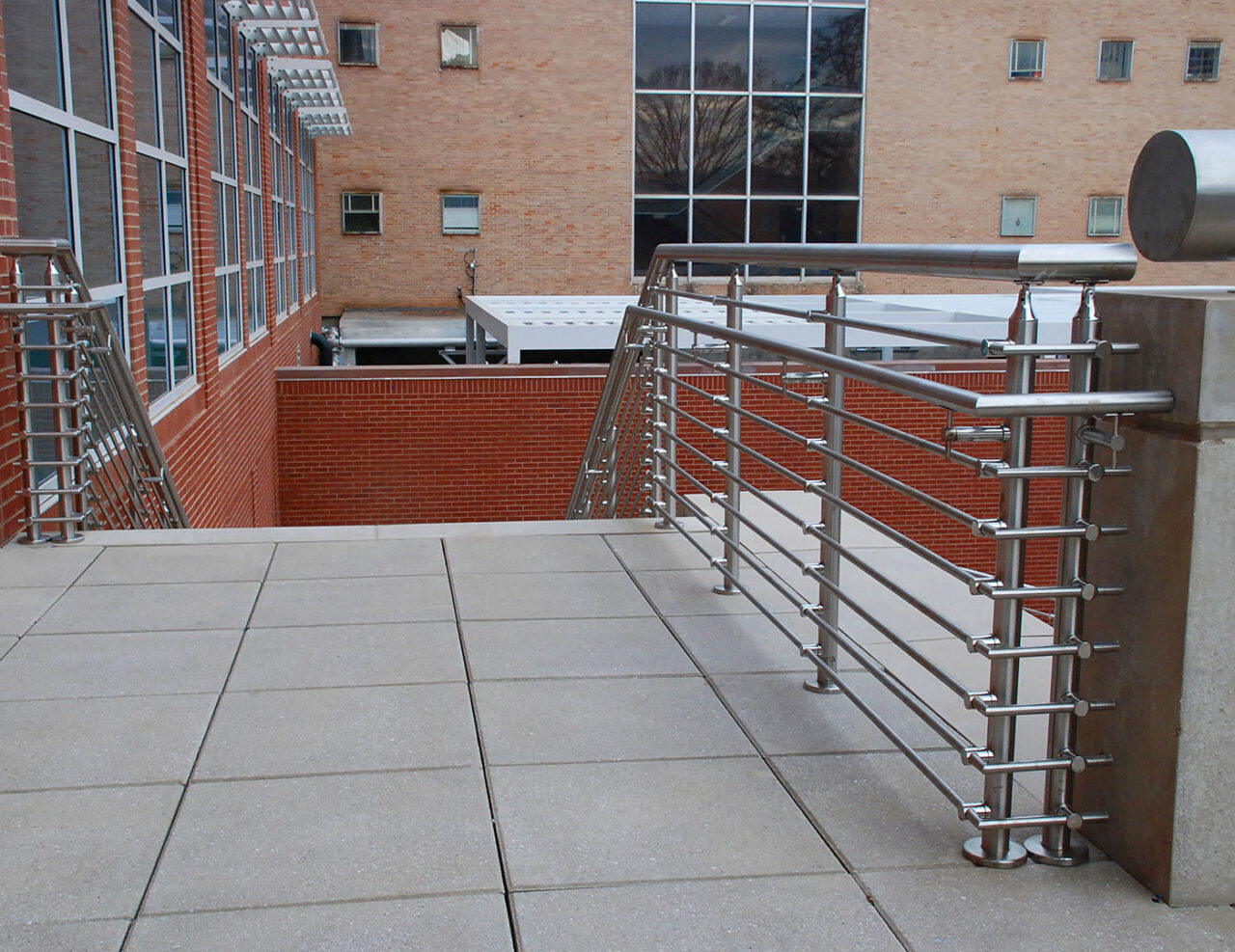

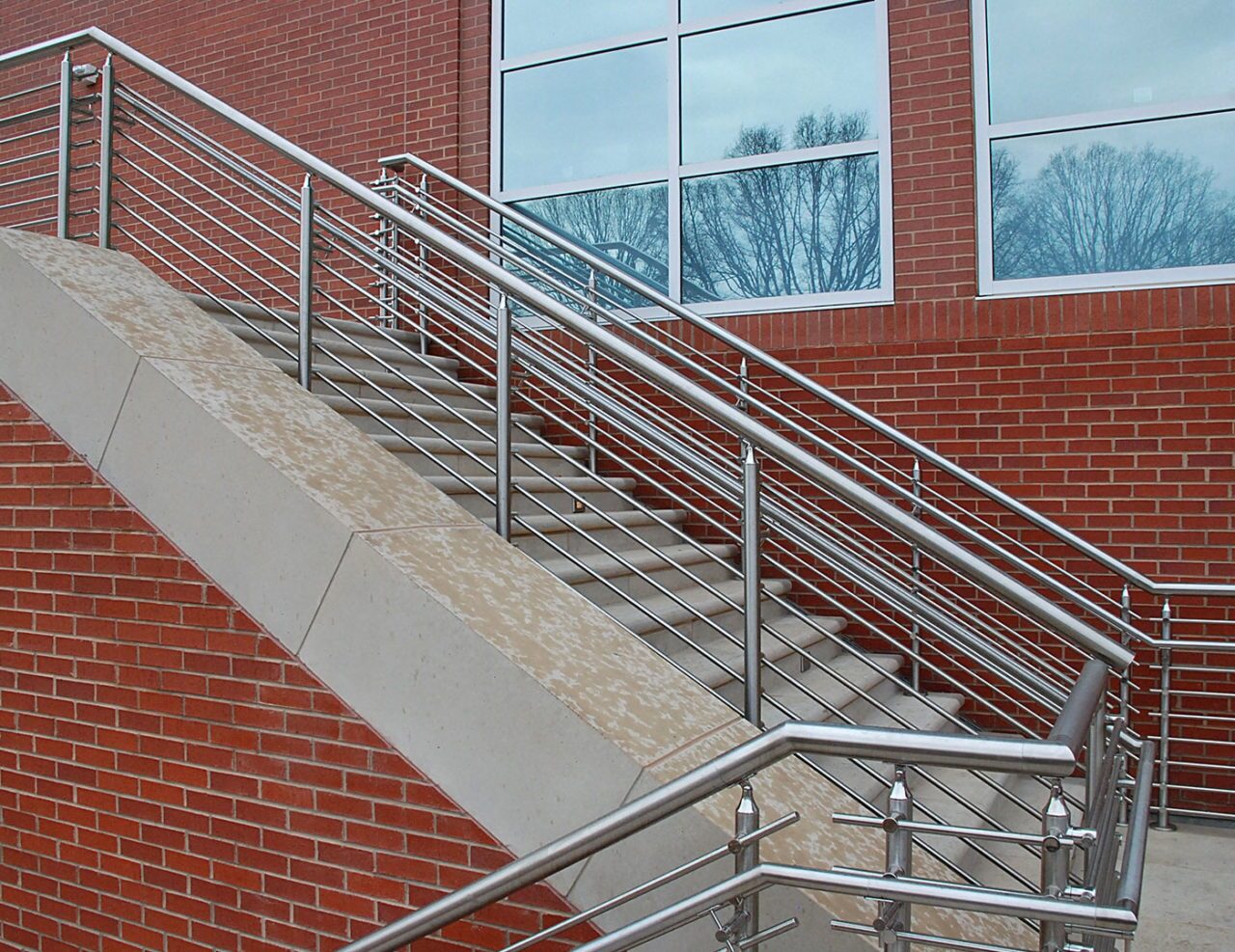

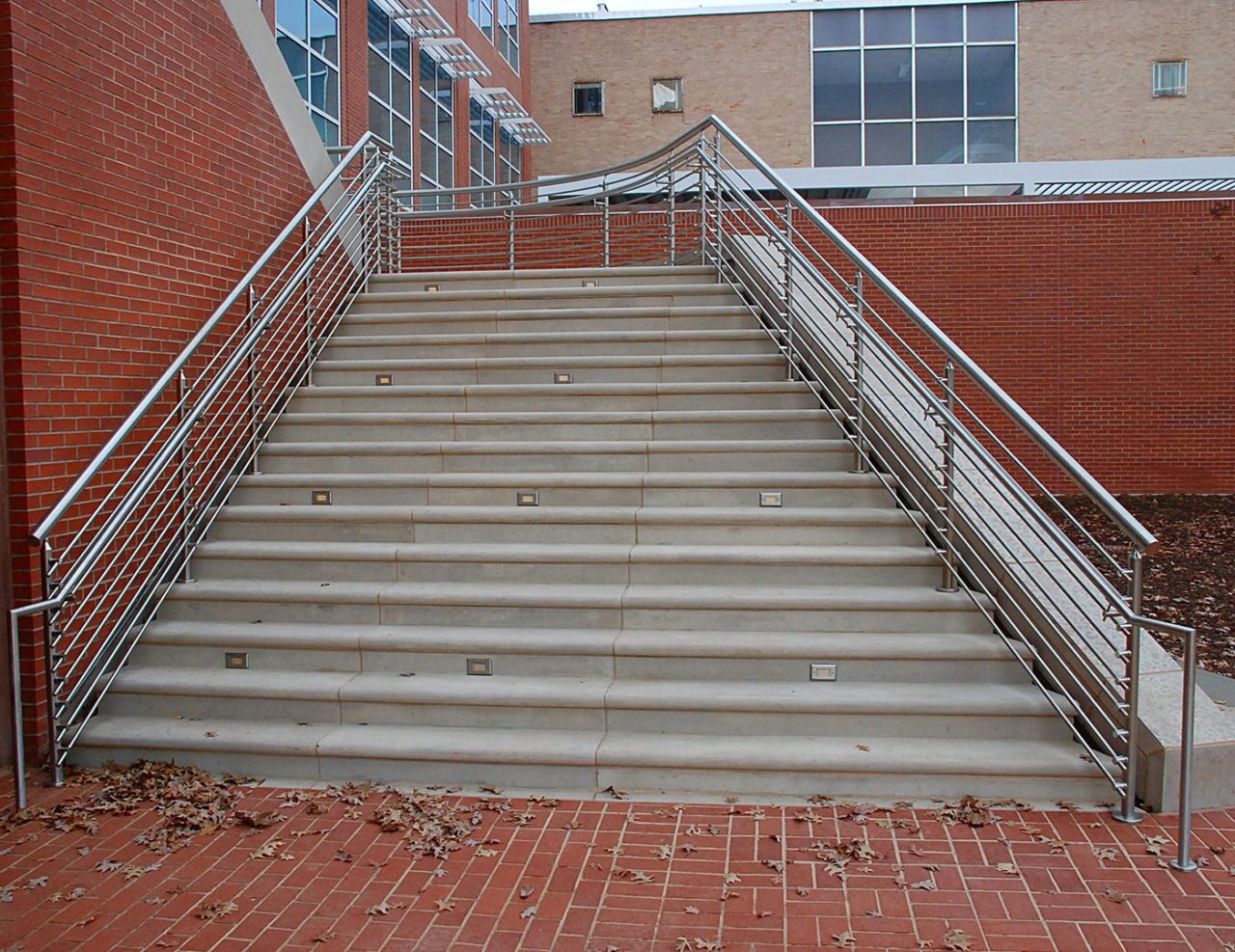

Stainless Steel Rod Railing LTR-02



Rod Railing is a revolutionary system and the innovative alternative to cable rail, it has the same sleek profile as cable but with enhanced strength and durability.



This premium railing infill is made with 1/4″rods formed from 304 or 316 stainless steel.  Unlike cable, these rods are simple to maintain, will never corrode, and won’t sag over time.
Rod Railing is highly customizable. Select lengths from 2’ to 20’ in one foot increments to fit your project requirements.

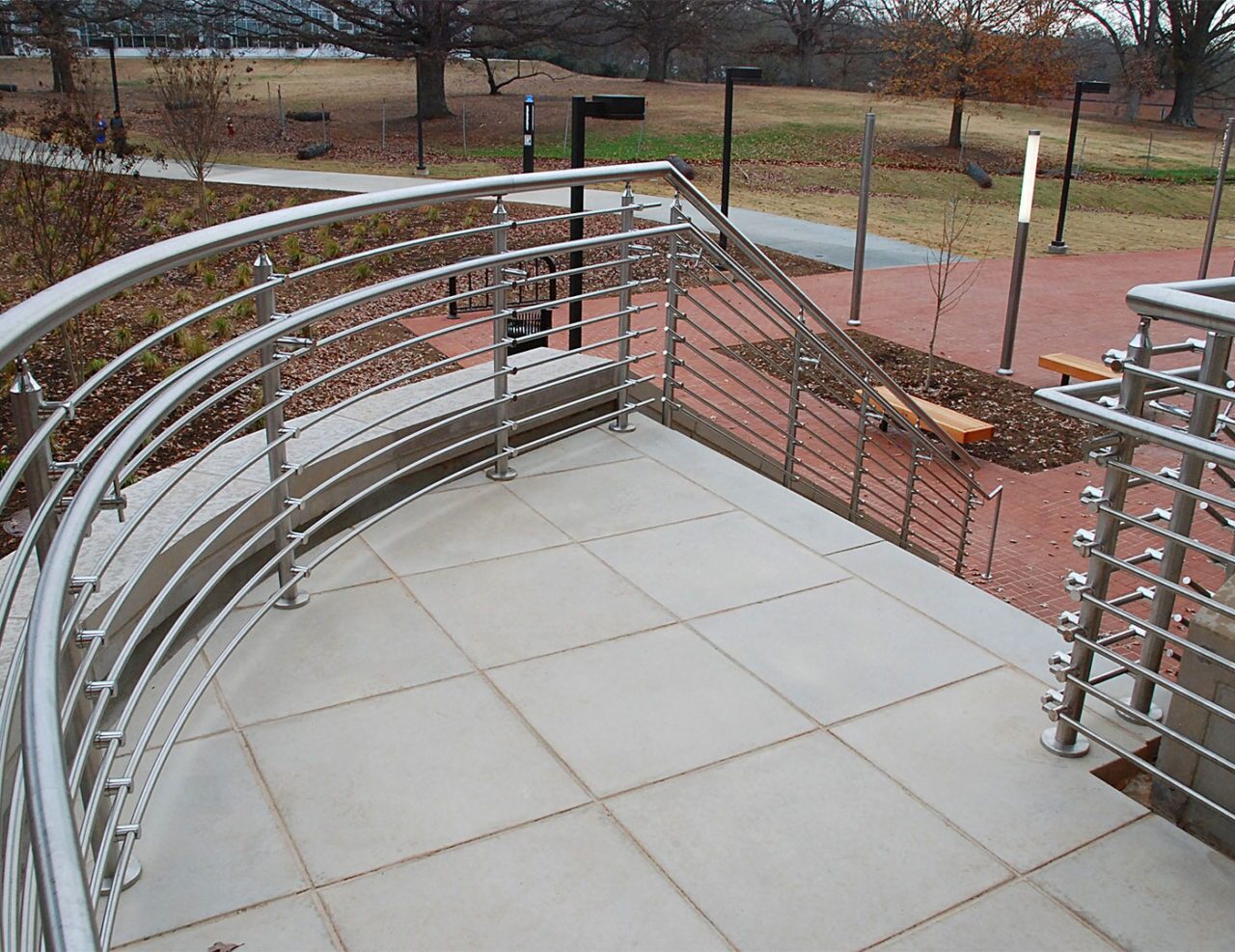

All Stainless Steel Round Bar is available in lengths up to 4 meters. Rod Railing can also be bent to turn a radius on a curved stairway, deck, or balcony.



Inquiry





  Material Finish Size/Spacing
Posts Stainless Steel (304 or 316)

Satin



Mirror polish



Electrophoretic color



Powder coat

Ø50.8/Ø48.3/Ø42.4/Ø33.7*THK1.5*H850mm;



口40*THK2mm;

Infill

Multiline (Crossbar)

Cable/Tube

Satin

Ø10mm, Ø12mm, Ø16mm, 15*5mm

10mm

Top Rail / Hand Rail



Stainless Steel (304 or 316)



Timber(beech/oak)



PVC



Aluminum

Satin



Mirror polish



Electrophoretic color

Round:Ø48.3/Ø50.8*THK1.5

Square:40*THK1.5

Oval: 80*40mm*THK1.5













Choice and flexibility

Whereas with many stainless steel balustrade systems you have a limited choice designs, choose ours and you’ll have a whole host of options;

1. Top rail or no top rail: Choose a system with a top rail for a more traditional look or go without for a minimalist, “barely there” styling

2. Posts:  Youve a choice of diameters for the posts (Ø42.4mm / Ø48.3mm / Ø50.8 mm / Ø60.3mm)

3. Components: A wide selection of components and fixings is available. This enables a wide range of distinctive designs to be created

4. Height: We offer the balustrade system at heights anywhere between 900mm (for systems installed at ground level) and

2 metres (for privacy screens). Note: decks, balconies and raised areas of 600mm or more above ground level require an 1100 mm high handrail (if work is subject to building regulations)



Why choose this system?

Standard Specifications

Project Suitability

Simple installation,

strong finish,

modern stability.

Timeless design is suitable for almost any location

Modular design allows flexible design - can go round corners and up/down steps



Simple to install



Suitable for surface (floor) and fascia mounting



Building regulation compliant



48.3 mm diameter stainless steel baluster posts (floor or fascia mount)



48.3 mm diameter stainless steel handrail



Modular stainless steel components



Grade 304 or Grade 316 stainless steel



Satin or mirror polished finish (mirror finish recommended for coastal areas)

Balconies



Patio and decks



Stairwells



Retail Projects



Offices / commercial



Holiday Lodges
