SS Spigot Glass Railing

Spigot/Mini Post Glass Balustrade LTS-01

· Frameless design, no steelwork posts required

· Stainless steel external grade G316 clamps

· Brushed finish

· Suitable to hold glass between 10mm - 15mm thick

· Designed for low-level balustrades and  divide screening / barriers

· Simple to install, minimalistic and modern design

· Available from stock for quick dispatch

Inquiry

Descriptions:

The Spigot Balustrade system is a highly versatile range. It is appropriate to have both internally and externally and can be used in commercial or domestic applications. The Spigot Glass Balustrade system will let you enjoy the view fully with non-invasive clamps holding the glass in place.



Glass panels are inserted into the spigot which provide the necessary structural support while raising the panels off the ground to allow easier cleaning of leaves and debris from underneath. Handrails if required can be either mounted on top of the glass or to the side using brackets.



Spigot can either be core-drilled into a solid concrete slab, or surface mounted onto a timber or steel structure (i.e., decking).



Our range of spigots and handrails come in both 304 and 316 marine grade stainless steel varieties. With options ranging from round, square, brushed or polished finishes to suit every need. Whether you’re using it to cordon off a swimming pool, surround a balcony or up a staircase, this balustrade system is sure to suit your needs.







Choice and flexibility

Whereas with many stainless steel balustrade systems you have a limited choice designs, choose ours and you’ll have a whole host of options;

1. Top rail or no top rail:Choose a system with a top rail for a more traditional look or go without for a minimalist, “barely there” styling

2. Components:A wide selection of components and fixings is available. This enables a wide range of distinctive designs to be created

3. Height: We offer the balustrade system at heights anywhere between 900mm (for systems installed at ground level) and 2 metres (for privacy screens). Note: decks, balconies and raised areas of 600mm or more above ground level require an 1100 mm high handrail (if work is subject to building regulations)





Material

Finish

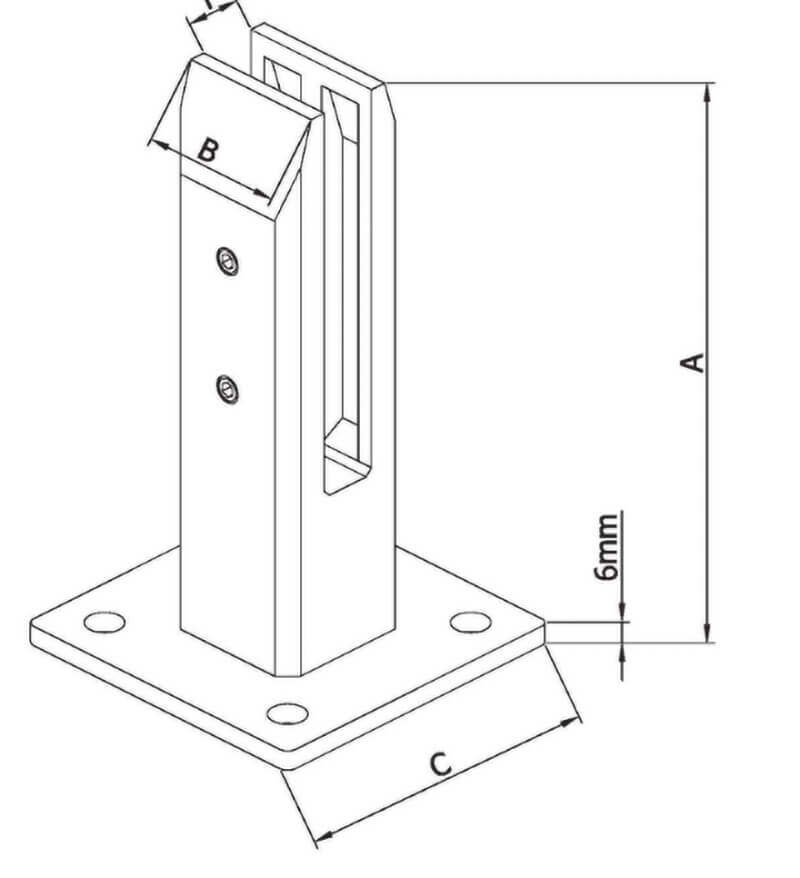

Size/Spacing

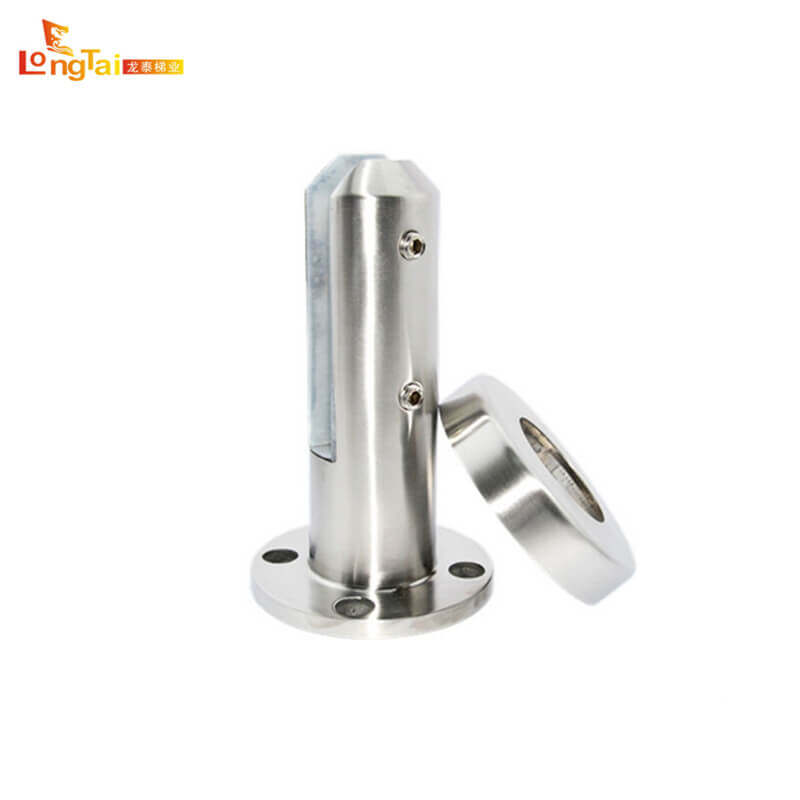

Spigot

Round/Square shapeStainless Steel(Grade304 or 316)

satin

 Height:165/180/220mm

mirror polish

electroplating

Infill

glass (Mono or SGP laminated)

clear /tinted/frit

Min12mm

Top Rail / Hand Rail

Stainless Steel(304 or 316)

satin

Ø42.4Ø48.3/Ø50.8/Ø60.3

50*25/50*10mm;口50

mirror

powder coat

Timber





PVC



Ø43

Aluminum



Ø45/Ø50/Ø60
636/640/735/700/845/755



Why choose this system?

Standard Specifications

Project Suitability

•Stunning contemporary design



•Makes the most of your views



•Blends with any surrounding



•Building regulation compliant



•Tested to BS 6180: 2011

•165mmheight stainless steelspigot posts (floor orinfloormount)

•Modular stainless steel components

•Can be supplied with or without handrail

•Clear or frosted glass available

•12 mm toughened glass panels - cut to size to suit project

•Grade 304 or Grade 316 stainless steel



•Satin or mirror polished finish (mirror finish recommended for coastal areas)

•Balconies



•Patios / decking



•Sun Terrace



•Mezzanines



•Commercial or retail use

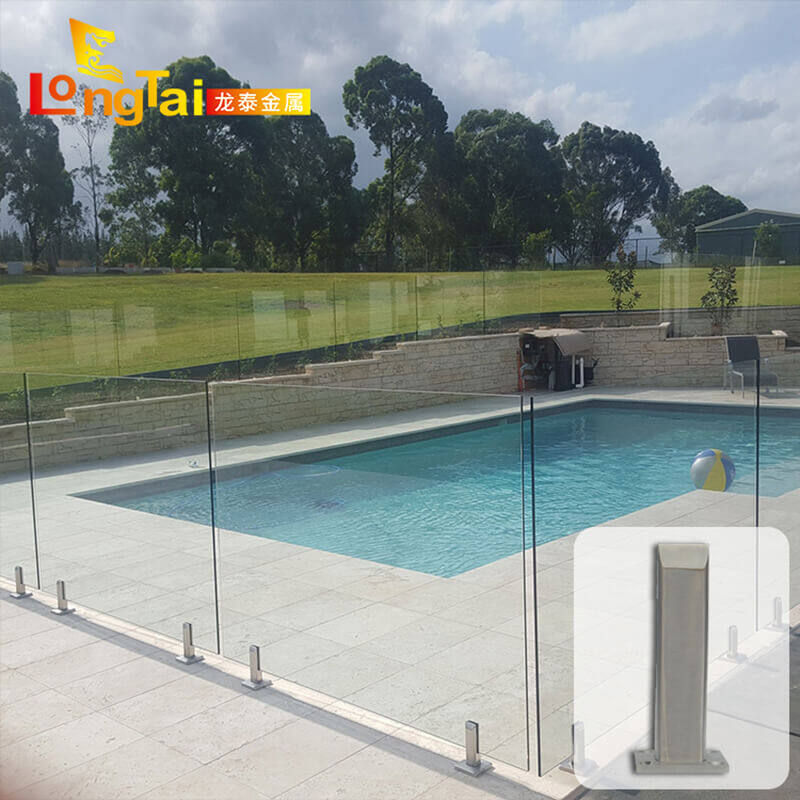

•Swimming pools
